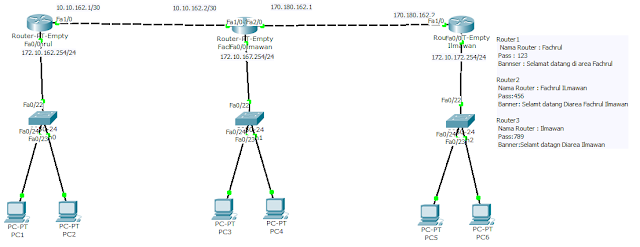

Konfigurasi 3 router dan routing dengan kabel cross dengan Cisco Packet Tracer

Router>en

Router#conf t

Router(config)#hostname fachrul

fachrul (config)#enable password 123

fachrul (config)#banner motd #Khusus Operator fachrul#

fachrul (config)#int fa0/0

fachrul (config-if)#ip add 172.10.162.254 255.255.255.0

fachrul (config-if)#no sh

fachrul (config-if)#exit

fachrul (config)#ip dhcp pool fachrul

fachrul (dhcp-config)#default-router 172.10.162.254

fachrul (dhcp-config)#network 172.10.162.254 255.255.255.0

fachrul (dhcp-config)#end

fachrul #conf t

fachrul (config)#int fa0/1

fachrul (config-if)#ip add 10.10.162.1 255.255.255.252

fachrul (config-if)#no sh

fachrul (config-if)#^Z

fachrul #w

fachrul #exit

Routing

fachrul >en

Password:123

fachrul #conf t

fachrul (config)#ip route 172.10.167.0 255.255.255.0 10.10.162.2

fachrul (config)#ip route 172.180.162.0 255.255.255.252 10.10. 162.2

fachrul (config)#ip route 172.10.172.0 255.255.255.0 10.10. 162.2

fachrul #w

fachrul #exit

Router>en

Router#conf t

Router(config)#hostname fachrul_ilmawan

fachrul_ilmawan (config)#enable password 456

fachrul_ilmawan (config)#banner motd #Khusus untuk fachrul ilmawan#

fachrul_ilmawan (config)#int fa0/0

fachrul_ilmawan (config-if)#ip add 172.10.167.254 255.255.255.0

fachrul_ilmawan (config-if)#no sh

fachrul_ilmawan (config-if)#ip dhcp pool fachrul_ilmawan

fachrul_ilmawan (dhcp-config)#default-router 172.10.167.254

fachrul_ilmawan (dhcp-config)#network 172.10.167.252 255.255.255.0

fachrul_ilmawan (dhcp-config)#end

fachrul_ilmawan #conf t

fachrul_ilmawan (config)#int fa1/0

fachrul_ilmawan (config-if)#ip add 10.10.162.2 255.255.255.252

fachrul_ilmawan (config-if)#no sh

fachrul_ilmawan (config-if)#exit

fachrul_ilmawan (config)#int fa2/0

fachrul_ilmawan (config-if)#ip add 172.180.162.1 255.255.255.252

fachrul_ilmawan (config-if)#no sh

fachrul_ilmawan (config-if)#^Z

fachrul_ilmawan #w

fachrul_ilmawan #exit

Routing

fachrul_ilmawan >en

Password:456

fachrul_ilmawan #conf t

Enter configuration commands, one per line.  End with CNTL/Z.

fachrul_ilmawan (config)#ip route 172.10.162.0 255.255.255.0 10.10.162.1

fachrul_ilmawan (config)#ip route 172.10.172.0 255.255.255.0 172.180.162.2

fachrul_ilmawan (config)#^Z

fachrul_ilmawan #w

fachrul_ilmawan #exit

Router>en

Router#conf t

ilmawan (config)#hostname ilmawan

ilmawan (config)#enable password 789

ilmawan (config)#banner motd #Khusus untuk ilmawan#

ilmawan (config)#int fa0/0

ilmawan (config-if)#ip add 172.10.172.254 255.255.255.0

ilmawan (config-if)#no sh

ilmawan (config-if)#ip dhcp pool C

ilmawan (dhcp-config)#default-router 172.10.172.254

ilmawan (dhcp-config)#network 72.10.172.254 255.255.255.0

ilmawan (dhcp-config)#end



ilmawan #conf t

ilmawan (config)#int fa0/1

ilmawan (config-if)#ip add 172.180.172.2 255.255.255.252

Labor3(config-if)#no sh

ilmawan (config-if)#^Z

ilmawan #w

ilmawan #exit

Routing

Labor3>en

Password:789

ilmawan #conf t

ilmawan (config)#ip route 172.10.167.0 255.255.255.0 172.180.162.1

ilmawan (config)#ip route 10.10.162.0 255.255.255.252 172.180.162.1

ilmawan (config)#ip route 172.10.162.0 255.255.255.0 172.180.162.1

ilmawan (config)#^Z

ilmawan #w

ilmawan #exit

* merah : kode yg di ketikkan

*biru : kode yg entrikan tapi tidak terlihat
